HLNC-400+ CNC Stone Bridge Saw HLNC-400+数控石桥锯
领跑智能制作新“石”代
HLNC-400+ CNC Stone Bridge Saw HLNC-400+数控石桥锯
归属厂家：华隆
所属单位种别：家具板激光切割技能
想领会更多相干产物信息，请接洽咱们！
0594-2197723
hualongmc@163.com
数控石桥锯 HLNC-400+ 是一款装备可倾斜头和可倾斜任务台的数控全插补四轴桥锯，可以或许对板材和石块停止任何范例的加工、切割（直线或曲线、垂直或倾斜）、二维表面加工、铣削和二维雕镂操纵。
该机器可一次性或分步加工大理石、花岗岩、复合石材和陶瓷成品。
该机器可高度定制，因此下高产量车间的抱负处理计划：
* 厨房台面
* 打扮台台面
* 室表里墙板
* 地板
* 门阶、楼梯和门坎
* 街道家具
* 浮雕

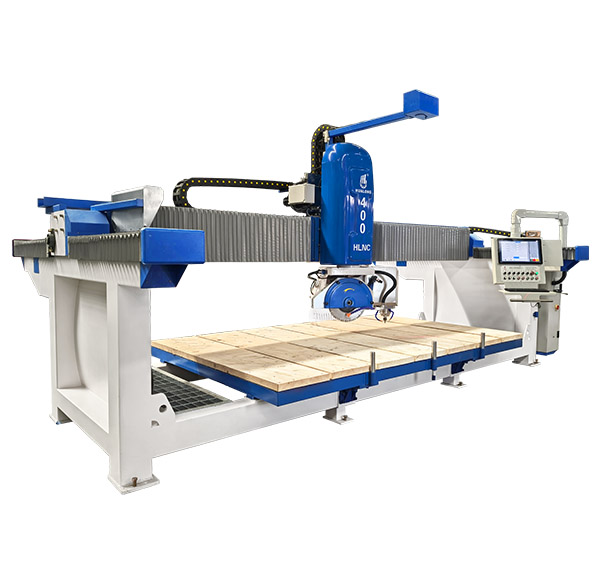

CNC Stone Bridge Saw
HLNC-400+ is a numerically controlled fully interpolated 4 axis bridge saw with tilting head and tilting table to carry out any type of machining, cutting (straight or curved, vertical or inclined), 2D profiling, milling and 2D engraving operations, on slabs and stone blocks.
This machine can work one shot or step by step to shape marble, granite, composite stone and ceramic pieces.
This machine can be very customized, it is the perfect solution for shops with high productivity of:
* kitchen countertops
* vanity tops
* wall panels for interiors and exteriors
* flooring
* doorsteps, staircases and thresholds
* street furniture
* bas-reliefs
|
Modle No.
|
HLNC-400+
|
HLNC-650+
|
|
Diameter of saw blade
|
mm
|
ø400
|
ø650
|
|
Blade mitering
|
°
|
0-45
|
0-45
|
|
Dimension of working platform
|
mm
|
3500x2100
|
3500x2100
|
|
Max. cutting length
|
mm
|
3500
|
3500
|
|
Max. cutting thickness
|
mm
|
70
|
200
|
|
Max. lifting stroke
|
mm
|
250
|
300
|
|
Max. lifting weight by sunction cups
|
kg
|
100 x 2
|
100
|
|
Power of main motor
|
kw
|
15
|
18.8
|
|
Power of electric spindle motor
|
kw
|
5.5
|
5.5
|
|
Power of cutter frame reciproctating motor
|
kw
|
2
|
2
|
|
Power of crossbeam shifting motor
|
kw
|
1.1
|
1.1
|
|
Power of hydraulic station motor
|
kw
|
2.2
|
|
|
Power of lifting motor
|
kw
|
0.85
|
0.85
|
|
Gross power
|
kw
|
28.7
|
32.5
|
|
Water consumption
|
m3/h
|
2
|
2
|
|
Gross weight
|
kg
|
4500
|
6000
|
|
Dimensions (L x W x H)
|
mm
|
5800x3380x2770
|
6200x3380x3000
|
